C2B M-Pesa Payment for Magento 2 - User Guide
Extension Installation
For Magento Marketplace Customers
- Find the Composer name and version of the extension in the extension's composer.json file.
- Login to your SSH and run:
composer require meetanshi/magento2-c2b-mpesa-payment
Enter your authentication keys . Your public key is your username; your private key is your password.
Wait for Composer to finish updating your project dependencies and make sure there aren't any errors.
To verify that the extension installed properly, run the command:
php bin/magento module:status Meetanshi_Mpesa
By default, the extension is probably disabled.
Enable the extension and clear static view files:
php bin/magento module:enable Meetanshi_Mpesa--clear-static-content
php bin/magento setup:upgrade
- For Magento version 2.0.x to 2.1.x -
php bin/magento setup:static-content:deploy
- For Magento version 2.2.x & above -
php bin/magento setup:static-content:deploy --f
php bin/magento cache:flush
For Meetanshi Customers
- Extract the zip folder and upload our extension to the root of your Magento 2 directory via FTP.
- Login to your SSH and run below commands step by step:
php bin/magento setup:upgrade
- For Magento version 2.0.x to 2.1.x - php bin/magento setup:static-content:deploy
- For Magento version 2.2.x & above - php bin/magento setup:static-content:deploy --f
php bin/magento cache:flush
Configuration

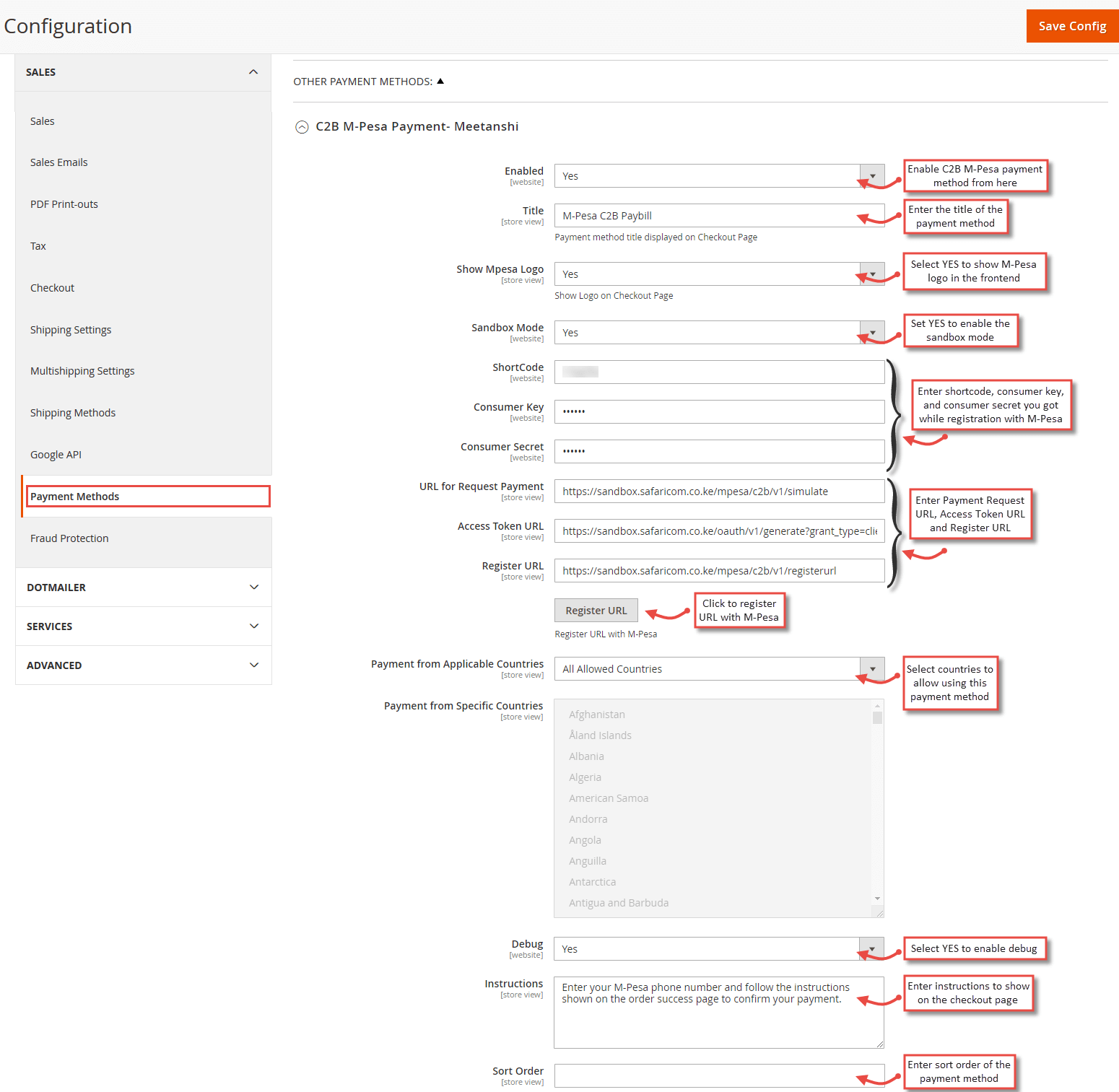

For configuring the C2B M-Pesa Payment for Magento 2 extension, log in to Magento 2, move to Sales > Payments Methods > C2B M-Pesa Payment - Meetanshi where you can find various settings to enable the extension.
Enabled: Set "YES" to enable the payment method.
Title: Set the title of the payment method to be displayed in the frontend.
Show M-Pesa Logo: Set YES to show M-Pesa logo along with the payment method in the frontend.
Sandbox Mode: Select YES to enable sandbox mode.
ShortCode : Enter Shortcode provided by M-Pesa while registration with Safaricom.
Consumer Key : Enter consumer key provided by M-Pesa while registration with Safaricom.
Consumer Secret : Enter consumer secret provided by M-Pesa while registration with Safaricom.

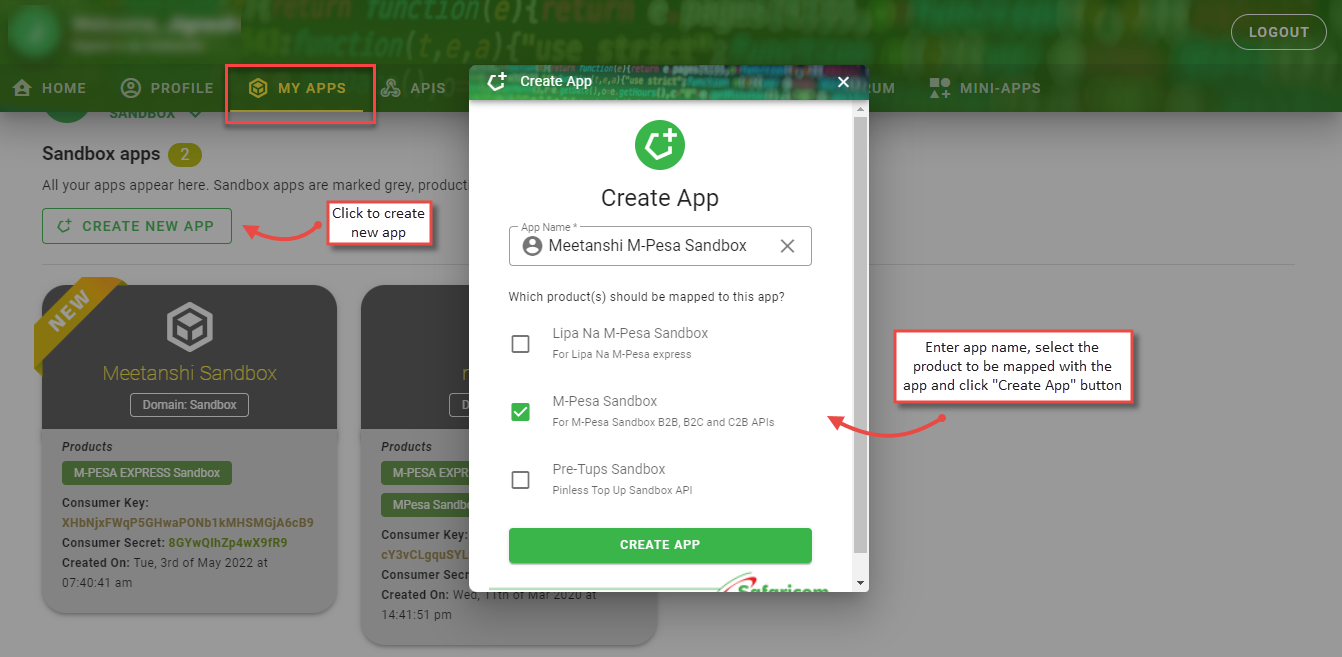

Login to Safaricom and move to My Apps. Click "Create New App" button and create new app for M-Pesa sandbox.

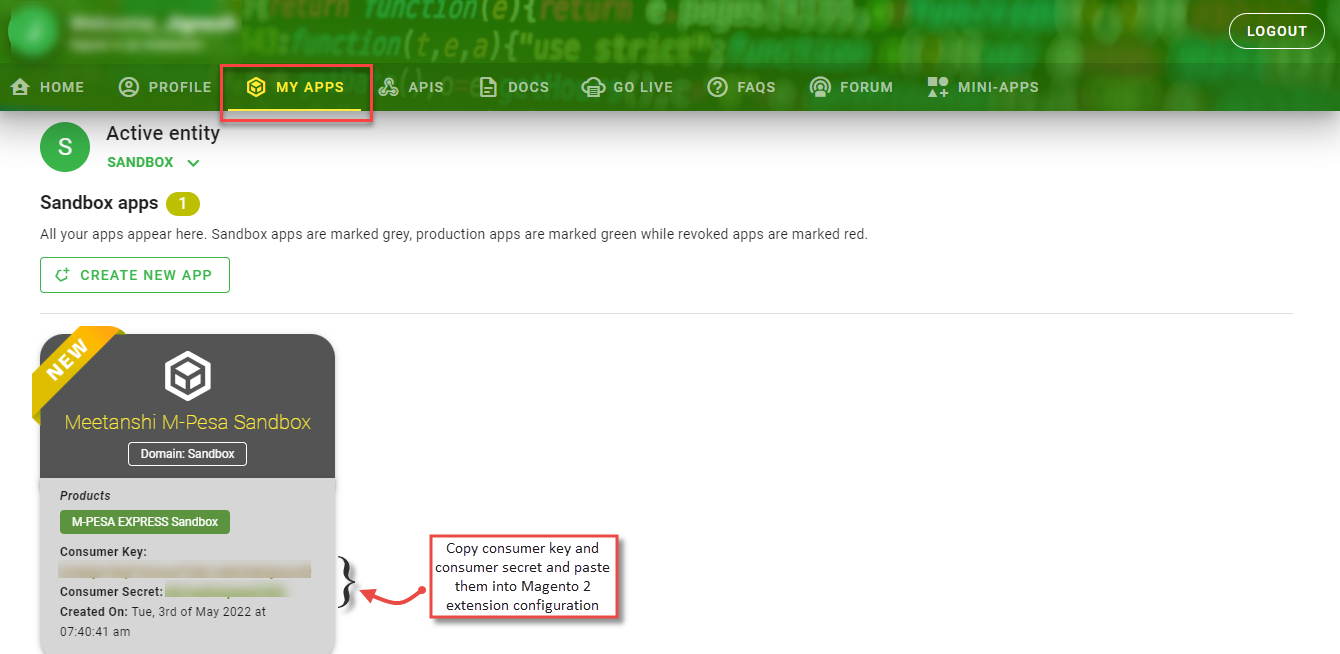

- Immediately after the app is created, you can see consumer key and consumer secret. Copy both and paste them in relevant fields in Magento 2 extension configuration.

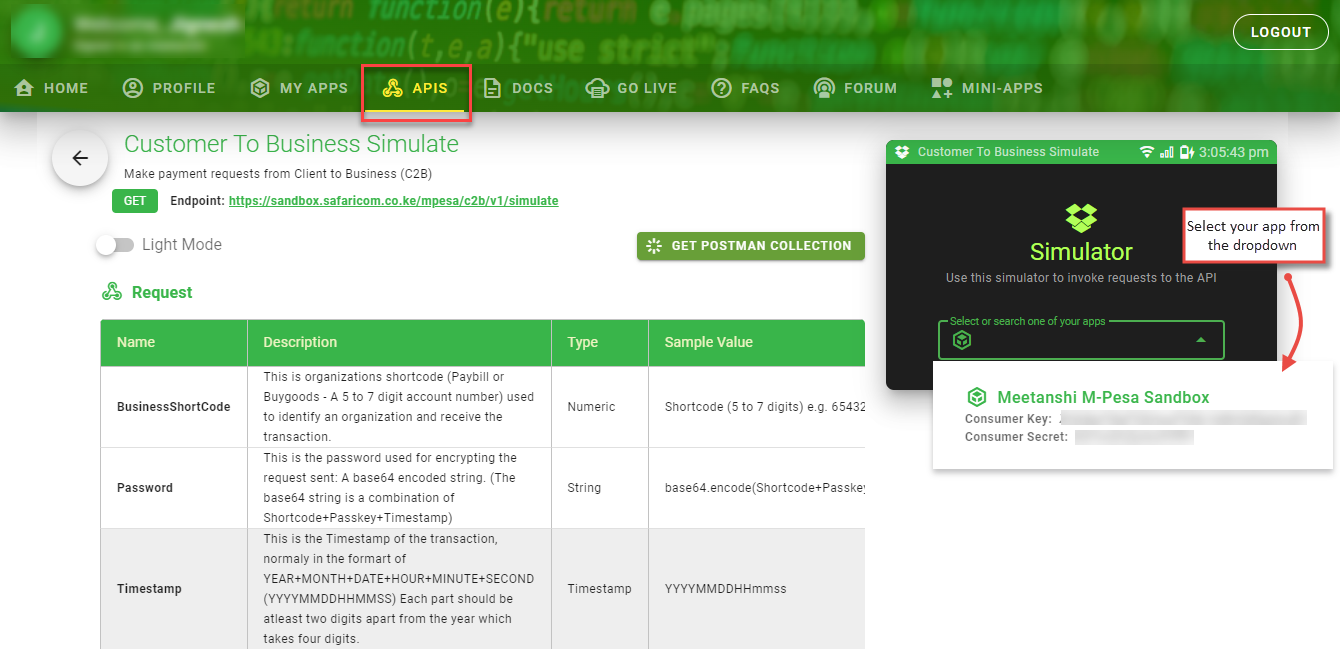

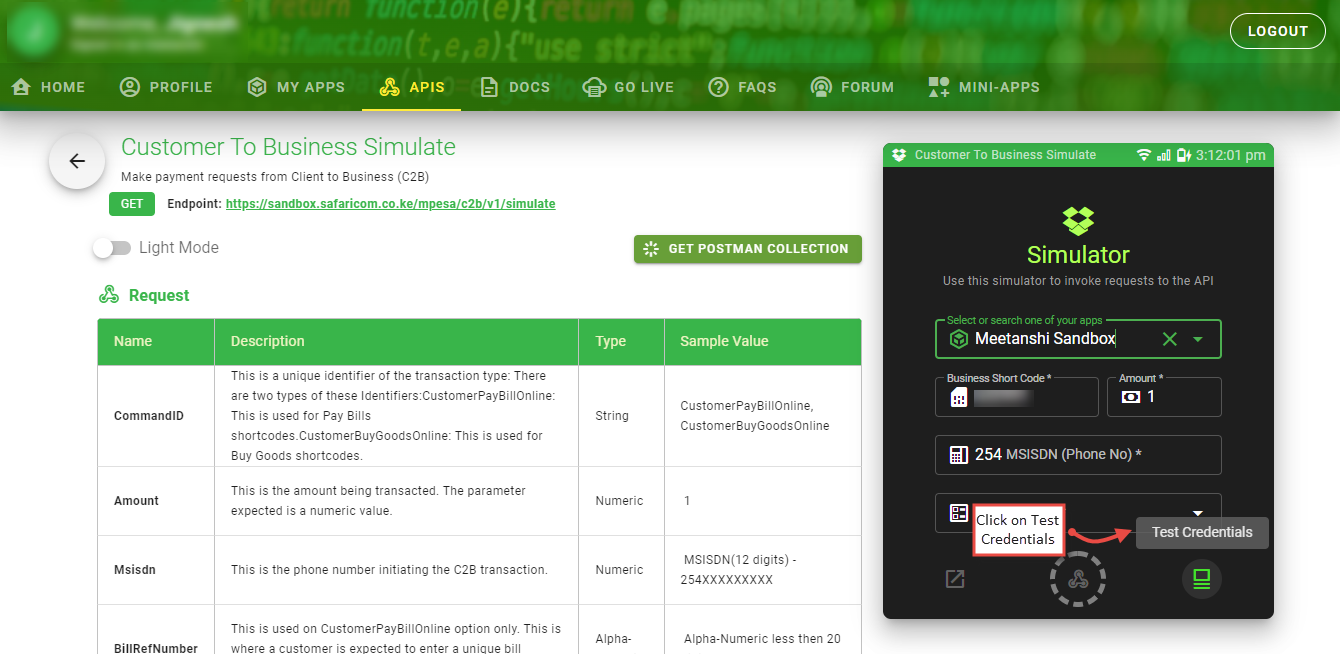

- Move to https://developer.safaricom.co.ke/APIs , click " Simulate " under Customer to Business.
- Select the app you created.

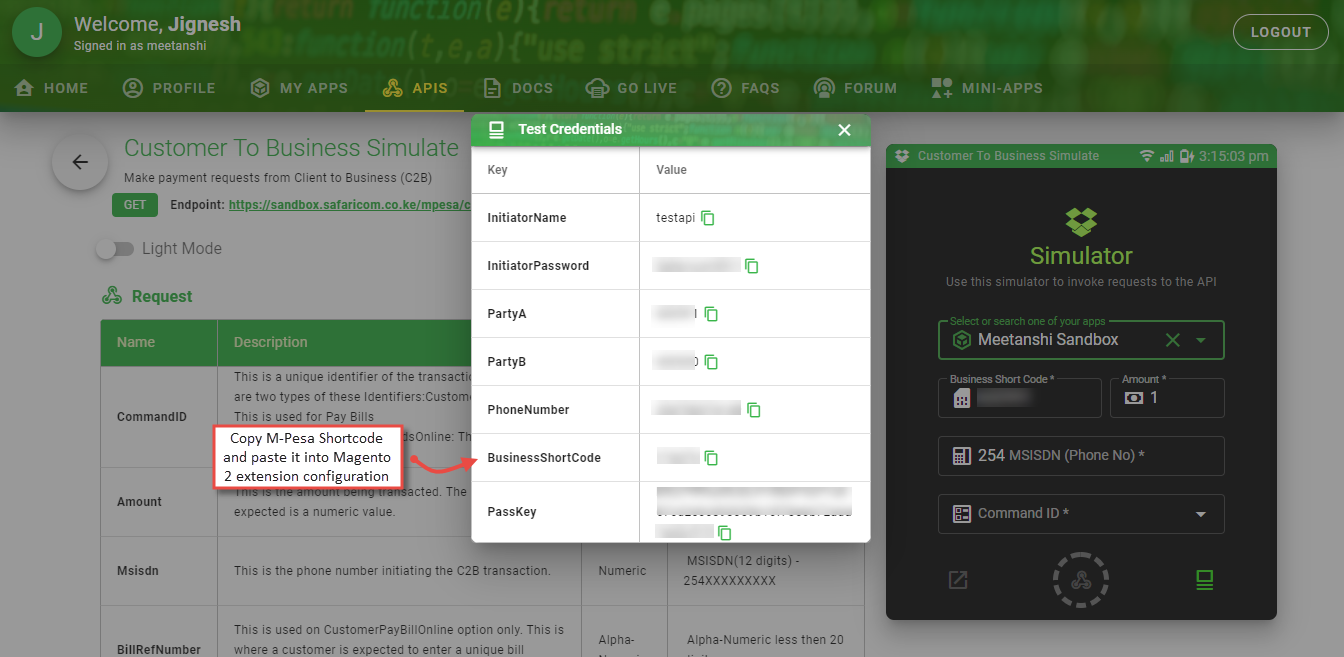

- Click on "Test Credentials".
- From the Test Credentials popup, copy the shortcode and paste it in the relevant field in Magento 2 extension configuration.
- URL for Request Payment: Payment request URL will be pre-filled on extension installation.
- Access Token URL: Access token URL will be pre-filled on extension installation.
- Register URL: Register URL will be pre-filled on extension installation.
- Payment from Applicable Countries: Select countries to allow using this payment method.
- Debug: Select YES to enable debug.
- Instructions: Enter instructions to show along with the payment method in the frontend.
- Sort Order: Enter Sort Order of the payment method display in the frontend.

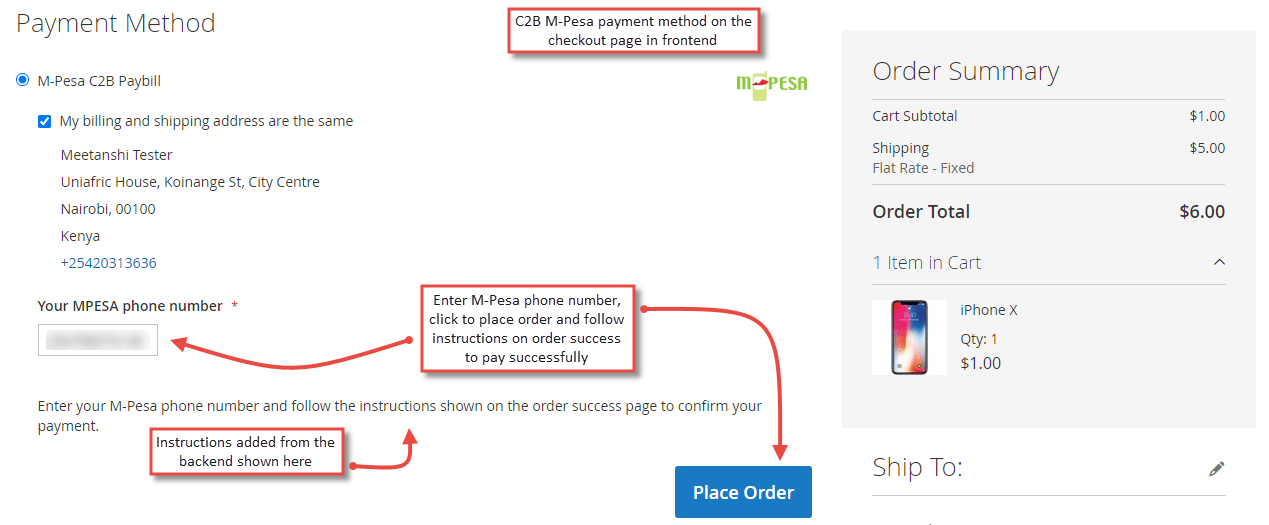

C2B M-Pesa Payment Method in Frontend
Once the payment method is configured, C2B M-Pesa Payment method is shown on the checkout page in the frontend while checking out the products. Just select the C2B M-Pesa Payment method, add M-Pesa mobile number and click "Place Order" to place order.

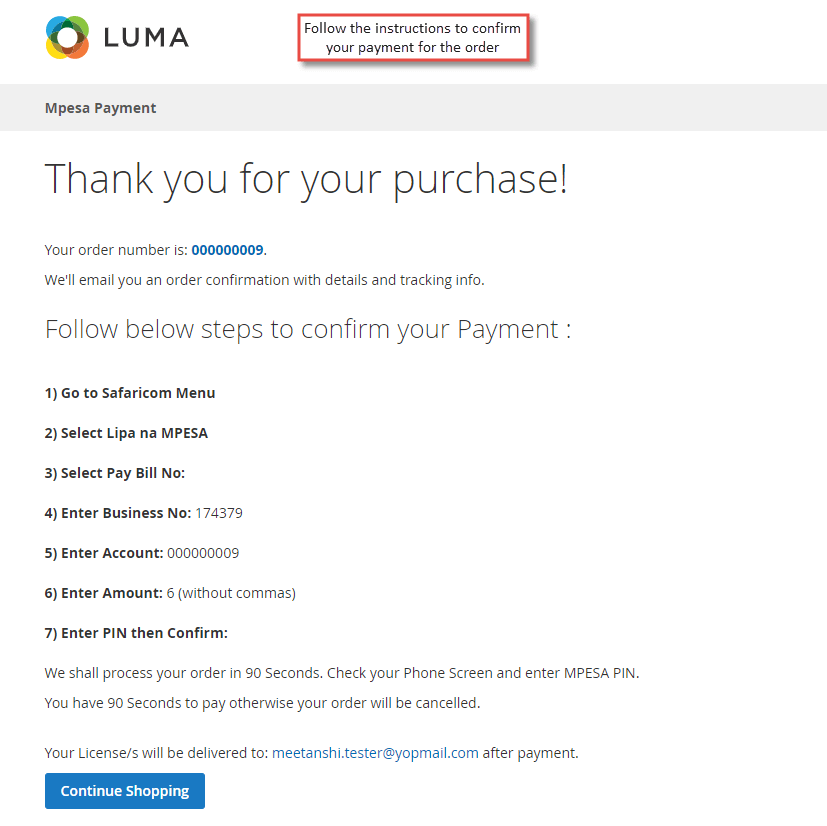

- C2B M-Pesa Payment Confirmation on Order Success
Once the order is placed, follow the instructions on the order success page to confirm the payment.

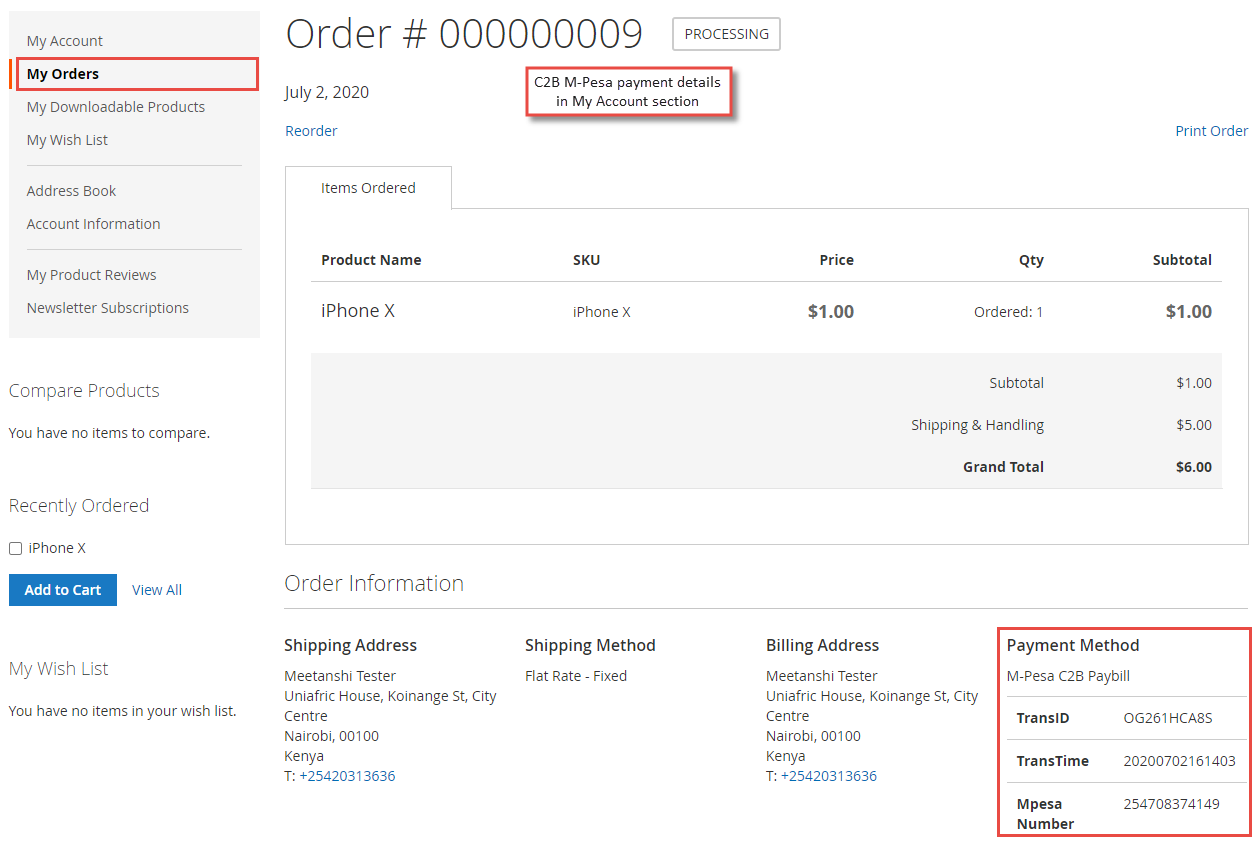

- C2B M-Pesa Payment Details in "My Account" section
Once the order is placed, the C2B M-Pesa Payment details are shown in the Account dashboard, in "My Orders" tab which includes payment method name, transaction ID, transaction time, and Mpesa number.

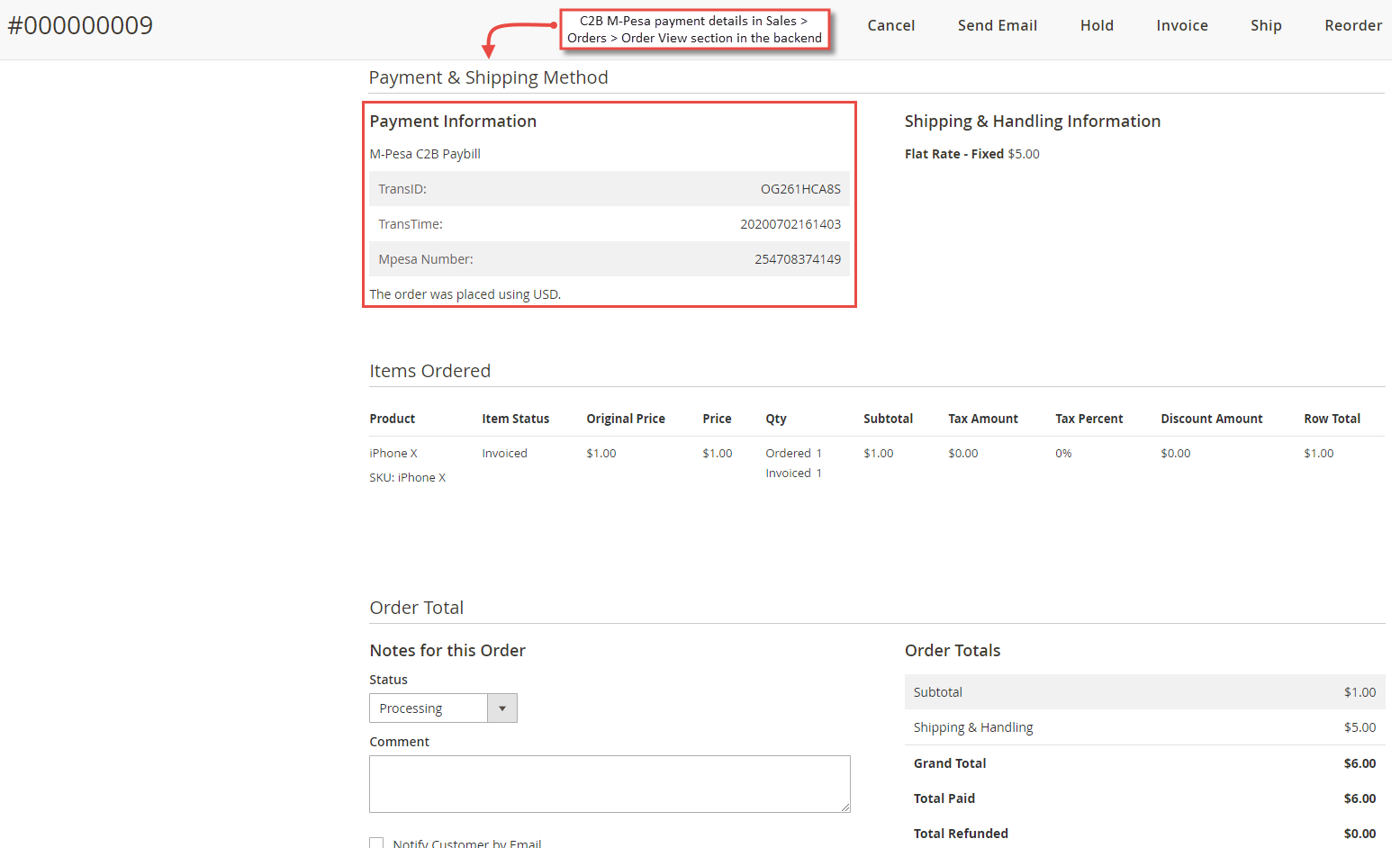

C2B M-Pesa Payment Details in Backend
Apart from the frontend, the admin can also view C2B M-Pesa Payment details in the Sales > Orders > Order View section in the backend. It displays the payment details like payment method name, transaction ID, transaction time, and Mpesa number.
